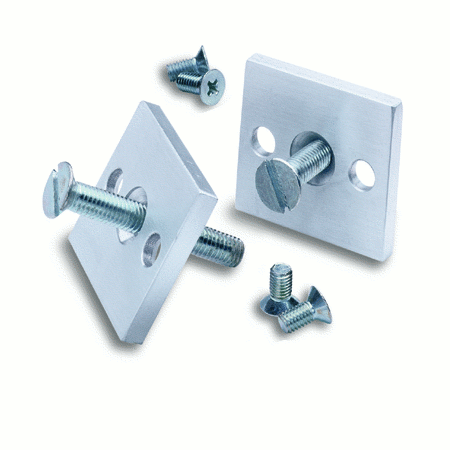

The small mounting bracket was designed to provide another means for mounting a Movotec CB "Bolt-On" cylinder to machinery or equipment. Kit contains (2) aluminum small mounting brackets, (4) M5x10 flat head screws, (2) M6x40 flat head screws, and (2) M6 lock nuts. This is enough hardware to mount a single Movotec CB "Bolt-On" cylinder to your structure. Please note that the M6x40 screws provided with the kit limit the structure's thickness to 35mm.
