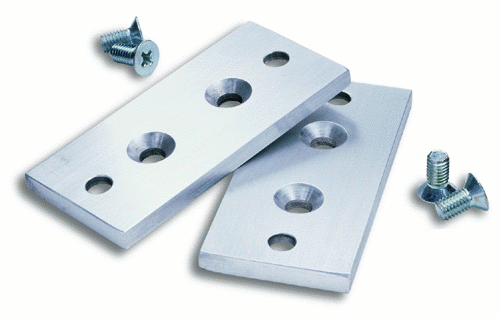

The large mounting bracket was designed to provide another means for mounting a Movotec CB "Bolt-On" cylinder to machinery or equipment. Kit contains (2) aluminum large mounting brackets and (4) M5x10 flat head screws. This is enough hardware to mount a single Movotec CB "Bolt-On" cylinder to your structure. The (4) M5 flat head screws that are required to mount the cylinder to your structure are not provided with this kit.
Please Note: Our drawings are viewable in PDF file format. In order to view the files, you must have Adobe Reader (or comparable software) installed.
